How to Shoot Hologram Master and Equipment

What's Holography Master Origination?

In the commercial world, there are generally, three types of holograms, film holograms ,photopolymer and embossed holograms. Embossed holograms are most common hologram products and can be easily mass produced by embossing. They are widely used for security, stickers, packaging, and display purposes. To produce embossed holograms, we have to make holography nickel master origination first.

Holography master origination is one piece of nickel shim which made in a laboratory by master shooting system(2D/3D or Dot-matrix) using laser light , advanced optics, and photosensitive glass. Holographer records holography image created by master shooting system onto photosensitive glass and coat the glass with silver layer for electronic forming. This is process to make a master origiantion. After electronic forming, we'll get one piece of holography nickel shim which records holography images and other information(for example, E-beam or Mole hidden text) in 2D/3D or Dot-master effect. This is called master origination. Then we can duplicate lots nickel copy shims from this origination by electronic froming.


Custom Design hologram Master One-time Setup Cost and Single Max Image Unit We Can Make.

A custom holography master cost is one-time setup cost. For next time continued order, the master cost won't be charged again. Our master price is very competitive because some materials and equipment needed to create a holography is developed by ourselvesand we save some time-consuming and complex process by our high technology to produce high quality masters. Usually, our master costs1/8 to 1/10 of master made in USA.

The majority of holograms sticker is in smaller size which is smaller than 70mm*70mm, which has most shininess and highest quality rainbow effect without noise wrinkle image. Depending on artwork, we also can work with larger pieces, we can make single holograms image without recombination maximum 150mm*150mm.


What's Holography Master Origination We Can Make?

All kinds of the holographic masters can be developed with our powerful holographic mastering system and recombination system. These masters are designed for both narrow web machine and soft wide web machine to produce embossed hologram stickers and holographic packaging materials.

The standard image sizes for the masters are 6" x 6", 12" x 12", 19" x 26", 36"x 40" and 36" x60". The larger image size masters can be achieved for the special requirement of the customer. Master in size of 6" x 6" is used to produce holography sticker mostly.

We offer an sophisticated range of holographic techniques to meet all levels of security and all your products promotional needs.

2D/3D--------2D/3D holography master origination just has one layer hologram image,. It doesn't have any other layers other than on surface. 2D hologram has several color hologram image or text on surface, without "virtual depth", but very shining, especially, it's big rainbow area. Most of flip-flop effect and most true color image is 2D on surface because it has best shininess.

Typically, there are 2 or 3 layers in one 2D/3D design. One layer is on the surface, other layers are in the mid-ground and background or floating. The effect is much like the flat scenery in a theatrical play arranged at different distances from the front of the stage to create the illusion of depth.

2D/3D Holographys have been intensively used on the commercial securities. The depth between the levels is the most important features of 2D/3D hologram. Good 2D/3D hologram sticker has very good visual depth between different layers and shininess on first layer.


2D -------- 2D/3D holography master origination just has one layer hologram image,. It doesn't have any other layers other than on surface. 2D hologram has several color hologram image or text on surface, without "virtual depth", but very shining, especially, it's big rainbow area. Most of flip-flop effect and most true color image is 2D on surface because it has best shininess.

FLIP-FLOP -------- Flip-flop effect is made by 2D/3D master shooting system. It's also called two channel effect of 2D/3D. Flip-Flop hologram can display two images from different viewing angle. When the viewing angle changes horizontally (left to right) or vertically (upside and down), different images evolve through the hologram.

Floating -------- Floating effect is made by 2D/3D master shooting system. Floating image or text floats highly above the surface, which causes the image has movement effect contrast to hologran images on other layer. It also has some kind of flip-flop effects if the floating image has big viewing angle.

2D/3D Kinetic Movement -------- 2D/3D Kinetic movement hologram image composed by at least 3 viewing angle(color) lines(images) in some certain sequence. Every line(image) has its own viewing angle, so lots lines can have kinetic movement effect. Kinetic movement effect made by 2D/3D master shooting system doesn't have so good movement effect as hologram made by Dot-matrix master shooting system because 2D/3D kinetic movement effect is composed of hologram lines, not millions of dots as Dot-matrix hologram has.

True color -------- True Color image is made by 2D/3D master shooting system. True Color Hologram is made up of photographic quality art-work, especially, of high resolution photo of people. If counterfeiters can't get the original photo, they can't duplicate hologram close to original hologram. It's a very good way to achieve anti-counterfeit performance by true color hologram.

Dot Matrix -------- Dot-matrix Holography original master created using a high resolution dot structure (600 DPI, usually). Viewed under a microscope, the kinetic dot-matrix Holography images reveals thousands of tiny sub-micron grooves over a minuscule area.

Dot-matrix hologram effect has a broader viewing angle than other 2D/3D holograms, So dot-matrix holograms used to create interesting kinetic effects in the holography. It. The dot-matrix hologram have lots kinds of kinetic movement as we can image and discribed by cumputer.


Resolution for security grade holograms typically begins at 400 dpi and goes higher(600 dpi, 1000 dpi and higher). Generally speaking, the higher the resolution, the more expensive it is to produce the master hologram. Also, larger images increase costs as a result of the increase in the number of pixels which must be generated. Usually, maximum single dot-matrix unit size we can made and recombine is 50mm*50mm.

There are two kind of hologram hidden text or Image. These two kinds of hidden features improve the hologram stickers security feature agaist counterfeit strongly. One is laser readable hidden text(image). It's also called E-beam hidden text too. Another is Mole hidden text or image.

Mole hidden text or image security feature ------- Mole hidden text or image security feature ------- Mole hologram hidden text(image) is advanced digital technology by encrypt a digital codes to encoding each dot of the images. Mole hidden text or image contains unique encrypted images or text, invisible to the naked eye. Mole hidden text just can be detectable by means of decode film when you cover it onto holographic sticker. The hidden text or image will appear when you put decode film onto it. Please click here to see sample. Click here to see Mole hologram hidden sample

E-beam hidden text or image security feature------- E-beam hidden text (image) is another advanced holography technology which make hidden image(text) directly in hologram master too. Hidden image(text) is invisible to naked eye without encryption reader(laser pointer). It's just can be seen with help of laser pointer. The hidden text (image) will be reflected out of the sticker when you light a laser pointer point to it.Click here to see E-beam hologram hidden sample

2D/3D and Dot-matrix combination------- 2D/3D and Dot-matrix combination------- Combining 2D/3D and dot-matrix methods into a hybrid hologram can be very effective in combining the broader viewing angle of movement effect dot-matrix hologram and brightness and 'viewing depth' of 2D/3D hologram. With the "virtual depth" in 2D/3D hologram and movement dot-matrix effect, combination can create an impact that has extra-ordinary viewing effects and also security features.

We also can recombine all hologram feature into one master. For example, we can add two hidden image(text) feature into 2D/3D and Dot-matrix combination. To do that, we have to arrange good design because not all design is suitable to combine several hologram feature together.

Flashlight feature------- Flashlight effect has new tech high security and eye catching beautifulness of hologram. It's new tech with high security and with special beam effect. The flash light looks like a torch beam come from the very deep background. Color with great pureness and shape of beam gets bigger and smaller smoothly with viewing angle changing. It won't have overlap with other images which located above it. It improves beautify and security of hologram!

Stereograms
Stereogram hologram can create a 3D effect of an object or show a small "movie clip" action sequence, especially having good effect to make people's head image into stereogram.



Big Size Holography Master Originations

We can produce big hologram master origination upto size 800mm*600mm. In special requirement we can make big master upto 1200mm*650mm. Big hologram masters are widely used for hologram hot stamping and holographic film production in wide web.

We also have lots big master in general design in stock. Most of these master are around 620mm*530mm. Following is the link of our General Design Holography Master Originations Photoes.

master samples 1
Clieck here to see General Design Holography Master Originations Photoes



Steps to Make Holography Master Origination.


Photosensitive Glass Master
(Step One)


Glass Master Sivlered
(Step Two)


Holography Master Origination
(Step Three)


Operation Holography Nickel Shim
(Step Four)

Step one, to make record holography image onto photosensitive glass master and deliver it.

master samples 1

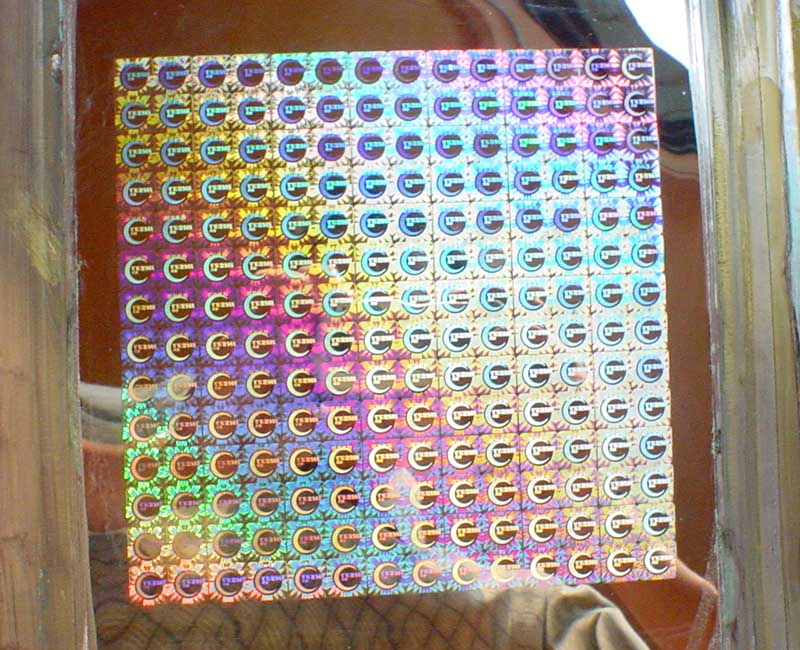

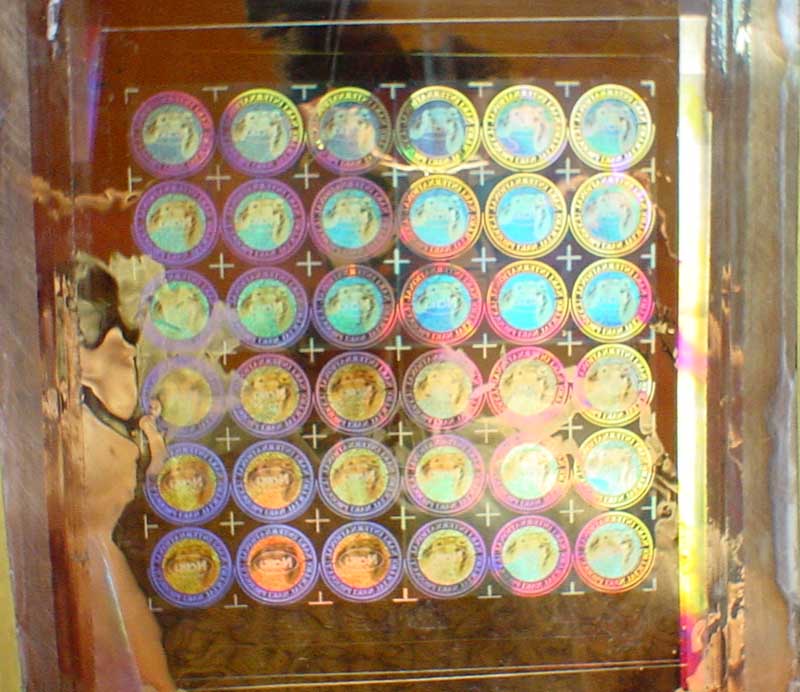

Photosensitive Glass Master. The photosensitive glass master has holography image come our after delivering.

master samples 1

master samples 1

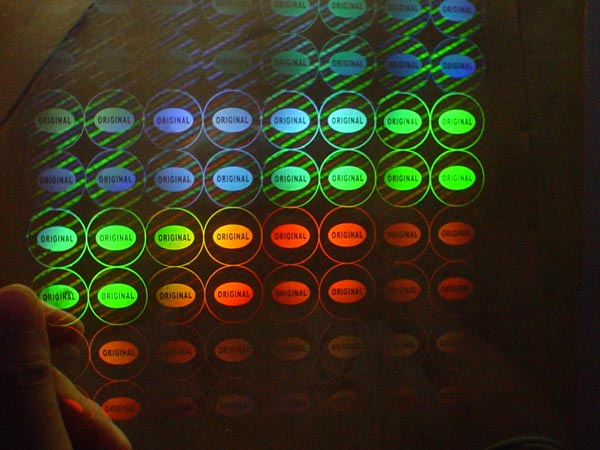

Photosensitive Glass Master of 'Original' general deisgn. It's 2D/3D two layers. One color foreground and two color background.

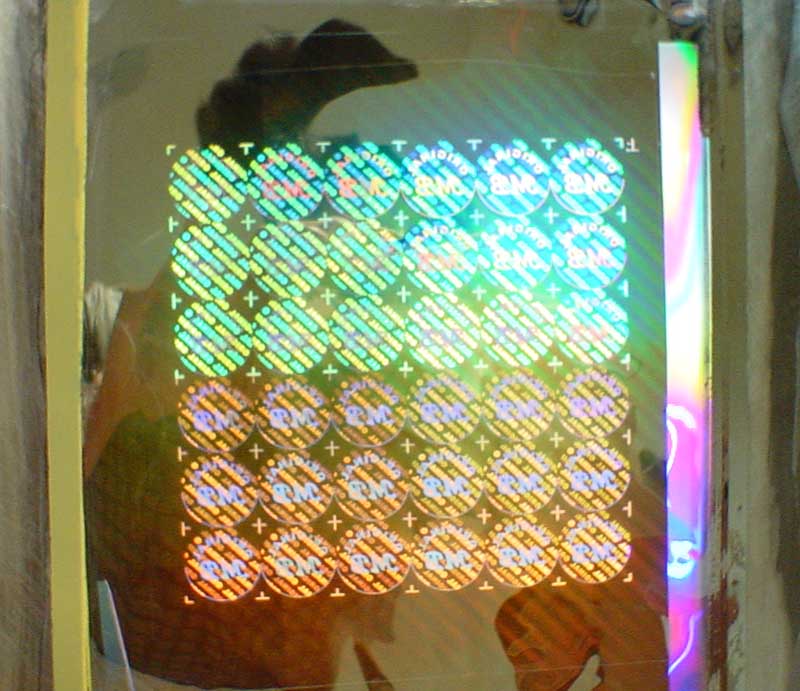

Photosensitive Glass Master. It's 2D/3D three layers. One color foreground , one color background and one color floating.



Step two, to coat silver layer onto photosensitive glass master, then the glass get current conducting. So we can put this glass into electronic forming tank to electronic form.

master samples 1

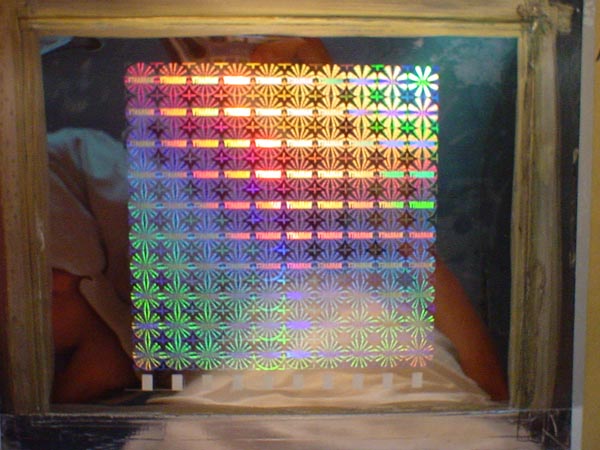

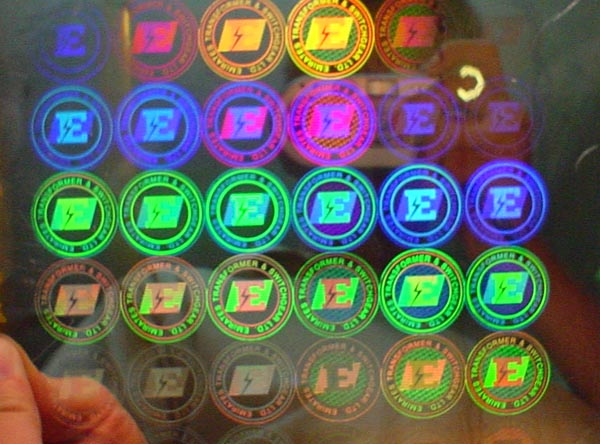

This is silver layer coated photosensitive glass master photo of above glass master. After silvering, glass get conducting, so we can put it into electronic forming tank to make master origination.



Step three, to electronic form sivler coated glass master and get holography master origination

master samples 1

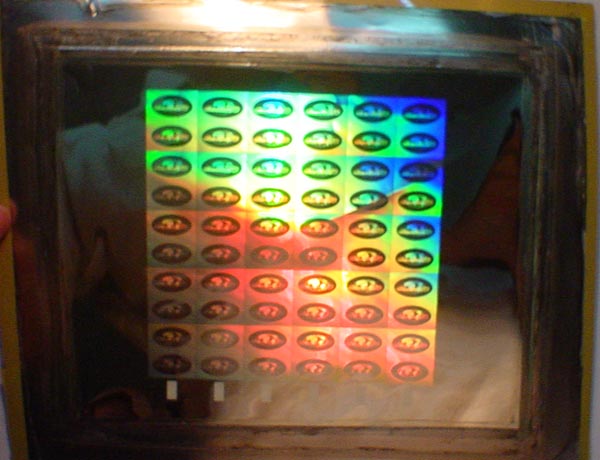

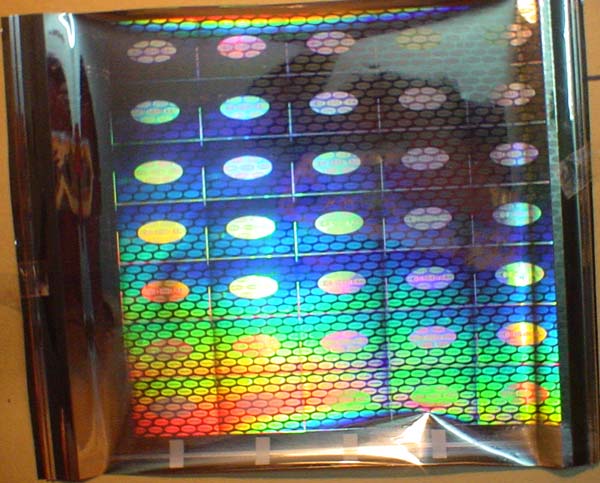

2D/3D master origination. It have 3 color in foreground, 2 color in background deep and one color floating. Click here to see master operation shim.

master samples 1

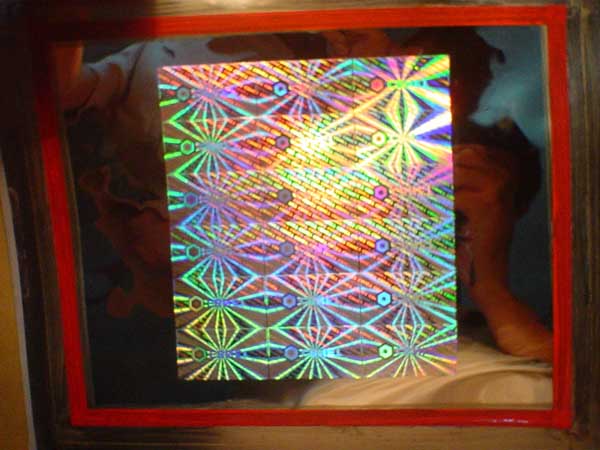

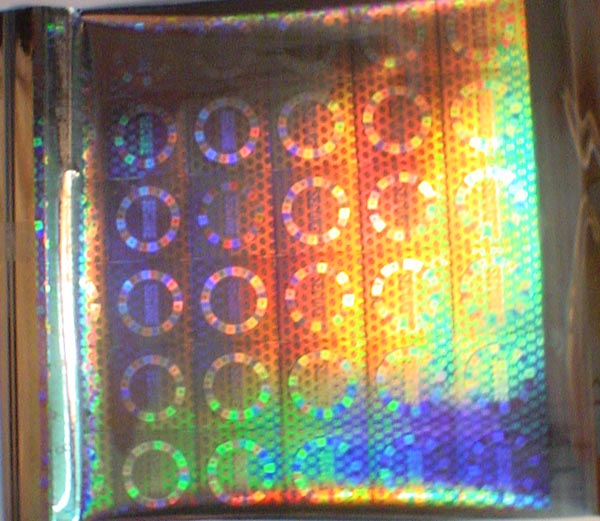

2D/3D master orgination. It has three layers. One layer rainbow effect on foreground(surface), one layer floating and one layer in background deep. Click here to see master operation shim.

master samples 1

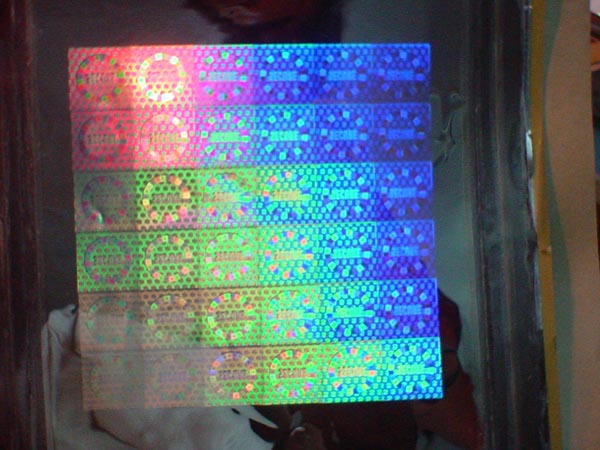

2D/3D master origination with E-beam hidden text. It has one layer floating, one layer on foreground(surface) and two layers in background in two color.

master samples 1
2D/3D master origination, one color foreground, two color two layers in background with different virtual depth

master samples 1

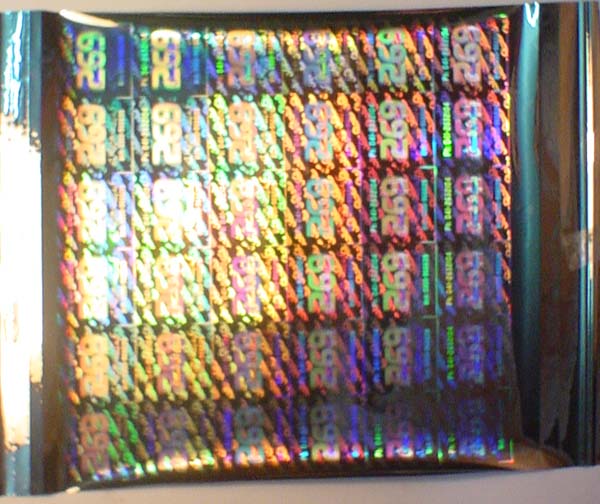

Dot-matrix effect & 2D/3D combination holography master origination. The text on surface is 2D/3D which make the text shining and clear.Movement effect is come from Dot-matrix effect.

master samples 1

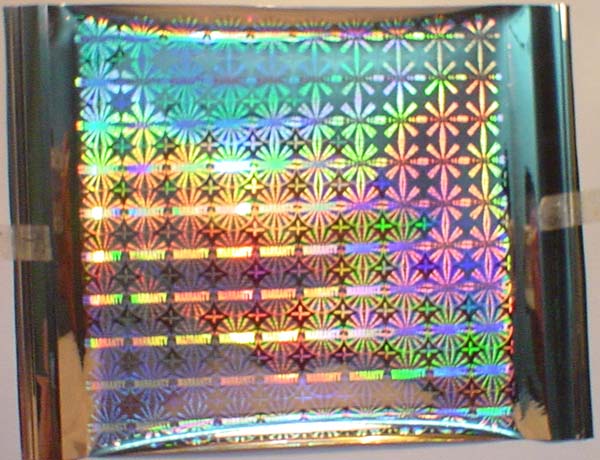

Dot-matrix effect & 2D/3D combination holography master origination. The text on surface is 2D/3D which make the text shining and clear.Movement effect is come from Dot-matrix effect. There's white register mark for automatic die-cutting and serial number printing track at the bottom of photo. Click here to see master operation shim.

master samples 1

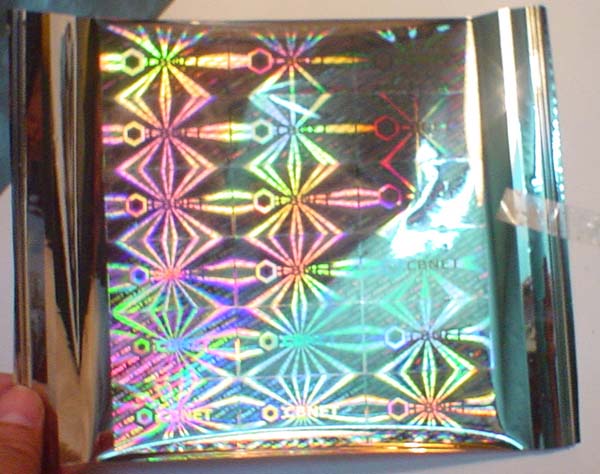

Dot-matrix effect holography master origination. All text and image is made with Dot-matrix way and the movement effect aslo is made in dot-matrix effect. Click here to see master operation shim.



Step four, to duplicate holography operation shim for embossing. The holography operation nickel shim is one mirro copy of master origination master.

master samples 1
2D/3D master operation shim(image is positive). This shim is one copy of master oigination(image is nagative). This is photo of holography operation shim which has been embossed by hard embosser. Click here to see master origination. To see arkwork.



master samples 1
2D/3D master operation shim(image is positive). Click here see to master origination. To see arkwork.

master samples 1
2D/3D master operation shim(image is positive). It has three layers hologram image. This is photo of holography operation shim which has been embossed by hard embosser. To see arkwork.

master samples 1
2D/3D master operation shim(image is positive). It has three layers hologram images. This is photo of holography operation shim which has been embossed by hard embosser. To see arkwork.

master samples 1
Dot-matrix effect & 2D/3D combination master operation shim(image is positive). This is photo of holography operation shim which has been embossed by hard embosser. Click here to see master origination. To see arkwork.

master samples 1
Dot-matrix effect master operation shim(image is positive). This is photo of holography operation shim which has been embossed by hard embosser. Click here to see master origination. To see arkwork.
