We produce and supply whole set equipment for hologram procution from design making to final application, include hologram mater originaiton shooting, electronic forming, hologram embossing, lamination and coating, cutting and hologram hot stamping transfering. Our hologram machines produce hologram sticker, hologram hot stamping foil, transparent hologram overlay, scratch off hologram and wide web holographic packaging film.


About Hologram Master Originaiton Hologram Master Originaiton master samples 1 master samples 2 master samples 3 master samples 3

About holographic master Shoot holographic master.
2D/3D holographic mastering, Dot-matrix mastering, 3D holographic mastering, Stereogram holographic master

Hologram Origination
More than 100 patterns big size holographic originations in stock, as well as supplying customized design master origination up size to 1200mm*650mm.

Photoresist Glass Master
Photoresist glass with laser beam effective pre-coated chemical can record hologram image by laser beam in lab or matrix system.

Nickel Hologram Origination
Hologram master origination is a piece of nickel shim copy from photoresist glass made by process of electronic forming. It's mother shim for next step hologram printing.

Embossing Operation Shim
Hologram shim in size of 6'*6' embosses on metalized film for sticker. Big size hologram nickel shim widely to do soft emboss for holographic packaging.

Hologram Procution Line Set Up, Training and Technology Trasfer
We supply whole set hologram production line, training and technology transfer with chemical formula for differnt solutions of hologram printing.

Holographic Sticker    Stock Design Hologram Label    Learn More Holographic Sticker    Some Samples Photoes 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 77 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100  about hologram



Here is equipment list of a simple hologram produciton line. Customers can add or reduce equipment in your printing plaint. We give full technology transfer and training to customers with satisfaction. With below equipment, you can produce hologram sticker , transparent hologram, hologram hologram stamping foil, etc from design in computer. For a starter to produce hologram, we recommend to begin with Step 4 equipment. Then you can save invest and begin hologram business very fast

1.    Dot-matrix shooting system(1270 DPI, 160mm*160mm)

2.    2D/3D Hologram Master Shooting Lab.

3.    Recombination machine, recombination area 300mm*300mm.

Hydraulic recombination machine with area 300mm*300mm.

4. Hard electronic forming machine (with chemicals and fomular)

    Soft electronic forming machine (with chemicals and formular)

5. Hard embossing machine

   Hard Embosser Model 1

   Hard Embosser Model 5 seamless hologram embosser, (recommended for hologram sticker in sheet/reel and hot stamping foil together)

6. Coating & lamination machine for hologram sticker/ hologram hot stamping foil.

7. Automatic die-cutting machine with slitting machine

   Automatic die-cutting machine with auto sheeting and slitting machine

8. Application: Automatic label application machine or hot stmaping machine.



1. Dot-matrix shooting system(1270 DPI, 160mm*160mm)

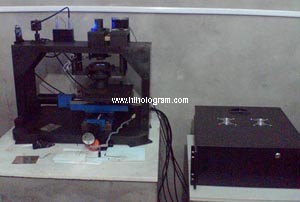

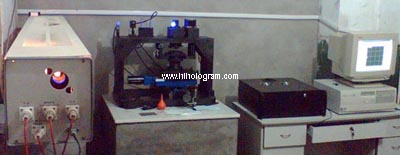

Dot-matrix master shooting machine in resolution(1270 DPI) Dot-matrix hologram master shooting system composed of optical, laser(15000 hours warranty), programmable controller, accurate platform, Optics bridge, computer and software. This system is intelligent engraving system. After you load engraving data which generated and optimized by our special software, it'll work automatic.

Specifications: 1. Platform dimension: 700mmX500mmX700mm
2. Weight: 250 KG
3. Power: 220V, 1KVA

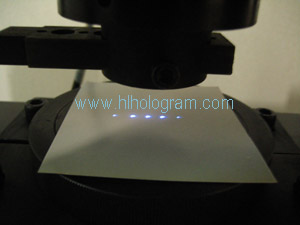

hologram laser

Characteristics:

1.Shape of Engraved Dot: circle or square (different model)
2. Engraving exposure speed: 20 ~ 80 dot/second(317dpi 635dpi 1270dpi);
3. Seperation of color: Plain Rainbow or RGB(different model)
4. Engraving area: 160 x 160 mm
5.
Resolution: 158dpi, 317 dpi, 635dpi, 1270dpi
6. Minimum viewing angle: 0.25 degree
7. Setting of viewing angle: 0 ~ 360 degree
8. Zoom in Zoom out effect: circle, square, rhombus, polygon, word, curve
9. Movement of curtain effect: two direction, one direction, or XY_ direction
10.Pearlescent effect: polygon movement of ray, random kinematic movement ray, combination of kinematic movement ray
11. Revolving ray effect: whatever revolving shape of curve, revolving effect of line, etc
12. Projective effect: whatever word, whatever font, recombination of image projection flex
13. Switch effect: Different flips switches with different viewing angle
14. Three-dimensional effect: word has fake three-dimensional effect, imitational 2D/3D hologram
15. Micron text effect: line of font can be 0.02mm, letter can be in size of 0.2mm
16. Random matrix: dots blink in different viewing angle
17. The operating system: Vista
18. Control graph: .TIF or .BMP file

Software:

Dot-matrix Artwork Designing software which consist of very user friendly software for creating.

        - All kinds of dot-matrix type hologram
        - True Color Images
        - Kineform
        - Micro-Text
        - DOVID
        - Super-line Patterns
        - Encryption Design
        - 2D/3D Holo-Patterns





2. New Type 2D/3D Hologram Master Shooting Lab

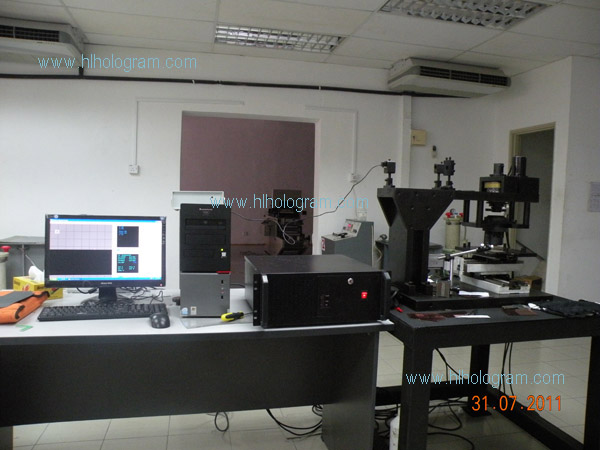

2D/3D mater shooting System new type, simple and easy to learn. With 2D/3D master shooting system, we can make 2D/3D, 2D, Flip-Flop, Microtext, Hidden Image, Special Effects, Animation. Main euipment required for 2D/3D holographic master shooting: Laser, X Y Stage, Optics, Optical table.
He-Cd laser

hologram laser hologram laser

This is the photo of He-Cd laser which is in my training room. Helium Cadmium Laser power is 60mv -100mw, 441.6nm, with control unit and power supply There're Chinese made or Japanese made laser(Kimmon,Japan) available. The laser controller is automatic. The laser power meter check the laser beam parameters.

Microprocessor-Controlled Automatic Positioning Equipment is 3D process machine who control the master shooting according to the pre-setting parameter. It can control position, distance and depth of hologram will be shooted and how long time glass will be exposed to laser beam when shooting.

hologram laser

hologram laser hologram laser

X Y Automatic stage controller to set X Y position, movement distance, exposure time, pause time, etc.

Optical Tables: 1200 x 1800 x 200mm, Metric M6 Holes, Isolated. Or equivalent. The vibration should be Isolated for holographic master shooting.

hologram laser hologram laser

The optical Table System should be isolated from outside environment vibration. It has to feature integrated accessories to optimize laboratory space, organization and safety. The system should have about 200mm thickness with a 1200mm width, 1800mm length and Metric M6 holes on a 25mm grid. There is a need to have casters with it as standard feature for easy



3. Small recombination machine up to size 250mm*250mm.

Small recombination machine to recombine small master up size to 220mm*220mm. PC-Controlled, automatic and simple operation with high precision 0.05mm.

Hologram recombination machine. 220mm*220mm size

Specifications:
1. Maximum recombination area: 220mm*220mm
2. Recombination precision: 0.05mm
3. Recombination function: Misplace, slope , blank, reverse
4. Control: PC, Windows operation system
5. Power: 220V/1.5KW
6. Dimension: 600mm*500mm*500mm(L*W*H)
7. Weight: 200 kg

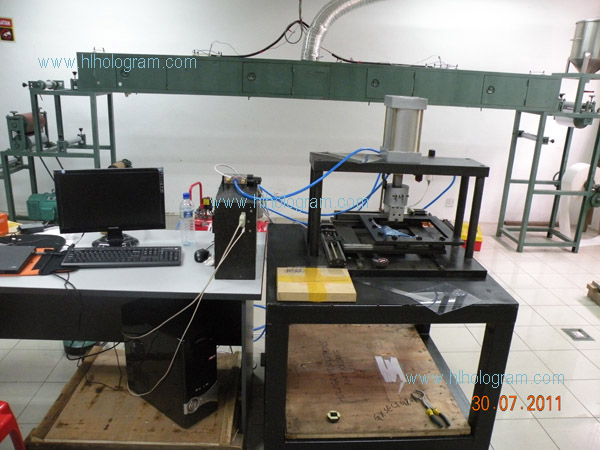

Hologram recombination machine working on plastic film and press hologram onto it.

Hologram images recombined on plastic film. After silver coating of the film, we can make hologram master origination by electronic forming.

Recombination software interface.

Hologram recombination machine body and press head with hologram shim on it.



4. Electronic forming machine



This equipment is consisted of electronic forming tank and controller. It's designed for the replication of holographic nickel shims by means of an electroforming process. It consists of the electro-deposition of nickel on a model (silver coated glass or nickel shim master) capable of conducting electric current. When the deposition is completed, it is possible to separate the newly copied child nickel hologram master shim from the mother nickel which has an mirror hologram image

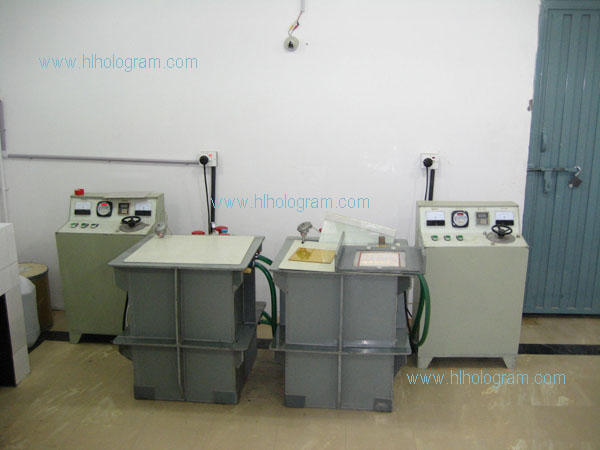

Electronic forming equipment. Soft and hard tank make hologram nickel master origination and operation nickel shim. The aim of this electronic formation is to copy the hologram from photoresist glass which has hologram imaged recorded, hologram imaged recombined onto PE film, or provide enough quantity operation shims for the embossing machines.

Hologram master origination is made by soft tank. This nickel hologram shim is copied from photoresist. There's brown photoresist glue coating still on the surface of nickel shim. We have wash it away.

Specifications:

Small electronic tank is for duplicating small master which is used to emboss hologram sticker and big tank is duplicating big master which is used to produce hologram film.

Small Hologram electronic forming machine
Specifications of small hologram electronic forming machine tank:
1. Max electronic formed size:250MM*250MM
2. Voltage std.:220V 50HZ
3. Power consumption:1KW
4. Dimension: 800MM*800MM*1000MM
5. Weight: 150KG

Specifications of hologram electronic forming machine power(controller):
1. Voltage std.:220V 50HZ
2. Power consumption:1.5KW
3. Dimension: 400MM*600MM*800MM
4. Weight: 100KG

Soft tank and hard tank

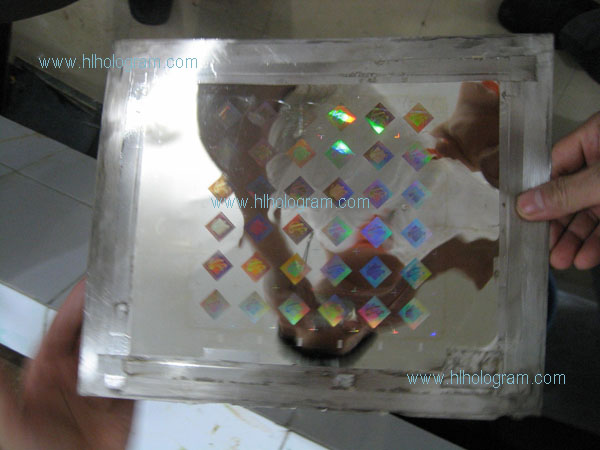

Tape hologram master origination for electronic forming copying

Hologram mother master made after soft tank electronic forming.



5. Narrow hard web embosser

Hard Embosser Model 1

Narrow web hard hologram embosser is designed for producing 160MM width hologram products, such as hologram labels, narrow web hologram film, hologram aluminum foil, hot stamping foil, etc. It consisted of three parts: embossing unit, heating system and control panel.

Specifications:
1. Max embossing dimension : 160*156MM/sheet
2. Embossed film thickness: 0.012MM-0.12MM
3. Max rewind & unwind rolls diameter: 500MM
4. Temperature scope: 0-180¡æ(Adjustable)
5. Embossing speed: 0M-30M/Min(Adjustable)
6. Counter scope: 0-99999 (Adjustable)
7. Shim size: <160*156*0.05 MM
8. Shim lift: 5,000M-10,000M/Shim
9. Voltage std.: 220V 50HZ
10. Power consumption: 3KW
11. Compressed air needed: 0-5Kg/cm2 (Adjustable)
12. Embosser dimension: 1300MM*750MM*120MM
13. Embosser weight: 600KG

Hologram embosser cylinder photo



Hard Embosser Model 5 seamless hologram embosser, (recommended for hologram sticker in sheet/reel and hot stamping foil together)

This machine is suitable for roll hologram sticker and hologram hot stamping foil production because it can control embossing gap in any even distance. Advance model seamless embossing hologram embosser for hologram hot stamping foil or hologram sticker in roll format

This hologram embosser makes embossing hologram roll in precise gap with any distance.

The hologram made by this embosser have precise gap. So the hologram sticker roll or hologram hot stamping foil is suitable for simple automatic application.


Characteristics:

1. Chip control, Rectify a deviation and put one automatically, rewind smoothly with little deviation less than 0.1mm
2. Intellectual temperature control, it is accurate in temperature control when embossing.
3. Automatic control unwind with auto tension control with chip control and magnetic powder controller
4. Automatic control rewind with auto tension control with chip control
5.
Control interface: Touch screen control. The structure is reasonable in design, it is flexible and convenient to dismantle
6. Side guide
7.
Auto control in temperature, tension, unwind, rewind protection
8. Save material than Mold 1 and Mold 2

Specifications:

1. Embossing are: 155mm----165.0mm
2. Heating with chip control and infrared ray detection
3.
Power : 220V or 380V, 6KW
4. Air pressure when embossing : 6 mpa pressure
5. Dimension: 1200mm*800mm*1200mm
6. Weight: 600kg

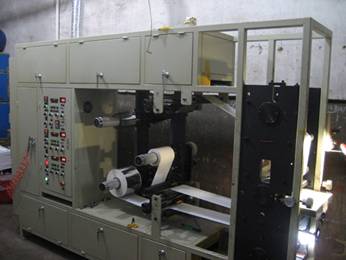

6. Lamination and coating machine

Lamination Machine + Hot Melt Adhesive Coating

Hologram sticker + hologram hot stamping foil. Glue lamination for hologram sticker and Hot melt adhesive coating machine

coating and laminating machine

Specifications:
1. Workinng speed: 1-55 m/min
2. Maximum coating width:200mm
3. Power: 380v 20KW
4. L*W*H:2700mm*800mm*1900mm
5. Weight:900kg



7. Automatic die-cutting machine with sheeting equipment and slitting equipment

Model A automatic die-cutting machine is very good to die-cut hologram sticker precisely and fast. It has sheeting equipment which sheet hologram into panels automatic and slitter which can slit big hologram sticker roll into small rolls.

Performance and Characteristics:

1. Automatic anti-deviation when unwinding foil. It can improve precision of unwind to decrease deviation in horizontal direction.
2. Intelligent photoelectricity location position ability. It can locate the right position of white register mark precisely.
3. Computer control technology. It's easily to set parameters for die-cutting according differect speed and size of stickers
4. Rotation ability of dit-cutting model. It can help to adjust model position precisely and can die-cut sticker in some special direction.
5. Rewind independently which imporove to rewind the waste film smoothly.
6. Two sets rewinder to help rewind small rolls after slitting smoothly.

Main Parameters:

1. Die cutting width and length: a.200X200mm2
2. Width of foil go through: 340 mm
3. Die-cutting speed: 250 times/min (max)
4. Rigester mark Positioning precision: 0.10mm
5. Precision to rectify a deviation: 0.15 mm
6. Max unwind Diameter: 500mm, Max rewind Diameter: 400mm, Max rewind Diameter for waste film: 350mm
7. Min slitting width: 12mm
8. Thickness of liner: > 65/g glassine liner
9. Power: 220V 2000W
10: Dimension: 450mm*900mm*1400mm
11. Weight: 700Kg





Master shooting system
Recombination Machine
Electronic Forming
Hologram Embosser
Laminator
Hot Melt Adhensive Coating Machine
Automatic Die-cutting Machine



Simple instruction of holographic master shooting lab(2D/3D) and master shooting


The making of a hologram can be divided into 2 procedures. The making of a master hologram and the making of a reflection hologram. hey both have to be recorded in total darkness. The recording of holograms is a process sensible to vibrations.

Let's start with the recording of a master hologram.

holographic master Shooting System

Master shooting System has two type. One is 2D/3D mater shooting System, another is Dot-matrix master shooting System.

2D/3D mater shooting System
There're two type of 2D/3D master shooting. One way is to shoot master by H1 glass to make hologram text or image in background. Another way is to shoot master by hologram image maker facility directly.To shoot master by hologram image maker facility directly, all forground image and background image can be shooted in same way(no need to make H1 glass for background first). It's much easily way than to make background by H1 glass. Master shooted by hologram image maker facility also is much shining and clearn without noise wrinkle than the master shooted in another way, especially, on big rainbow area. To shoot master by hologram image maker facility, we need automatic position localization equipment to locate record glass position precisely. To shoot master by H1 for background, we have to control position platform manully.

Two different 2D/3D master shooting, we need two different position localization equipment, one is manual positioning equipment , another is automatic positioning equipment.

We have both type master shooting technology. To shoot master by hologram image maker facility is suggested because it's easier to learn and quality of master made is better.


He-Cd laser

This is the photo of He-Cd laser which is in my training room.

It's the breif image of He-Cd laser structure

Microprocessor-Controlled Automatic Position Localization Equipment for 2D/3D, kinematic movement, flip-flop, hidden text, floating effect.

Microprocessor-Controlled Automatic Positioning Equipment is 3D process machine who control the master shooting according to the pre-setting parameter. It can control position, distance and depth of hologram will be shooted and how long time glass will be exposed to laser beam when shooting.

Specifications:

1.Voltage std.:-220V,50HZ, Power consumption <150W
2.Processor:2*57BYG060, 86BYG450B
3.Shutter:DC24V/0.5A, AC220V/2A
4.Value: Horizontal Direction 0.01mm, Vertical Direction: 0.01mm, viewing depth: 0.01mm
5.Times: Horizontal Direction<600 times, Vertical Direction<600 times, viewing depth Direction 1 time
6.Scope: Horizontal Direction<200.00mm Vertical Direction<220.00mm viewing depth<80.00mm
7.Waiting time: Toff: 1-999 second
8.Exposure time: Ton: 1-999 second
9.speed: 0-9 adjustable



Optical Table

Specifications:

Load weight: 500~800 kg
Solid Frequency Horizontal Direction < 1~1.8HZ Vertical Direction < 1.1~1.8HZ
Maximum anti-vibration value 1.1*10-3~ 3.5*10-3
Table Flat Smoothness: 0.10 mm/m2
Maximum relative displacement: 0.22 nm~0.10 nm
L*W*H: 1800mm*1200mm*140mm
The weight of whole System will be 300 kg.


This is the photo of optical table and optics which is in my training room. The main facility on top side of photo is Microprocessor-Controlled Automatic Position Localization Equipment

The laser beam splitter seperate one beam into two beam

2D/3D holographic master shooting System includes shooting system platform£¬Microprocessor-Controlled Automatic Position Localization Equipment£¬He-Cd laser and laser power; kinds of optics£¬kinds of chemicals for developing, fixing, bleaching glass, silvering hologram glass£¬other equipemnts
Step 1. shoot master directly by hologram image maker facility or shooting H1 glass, shooting background, shooting 2D
Step 2. Silvering hologram glass


Dot-matrix master Shooting Machine

Dot-matrix master shooting machine in resolution(158 DPI, 317 DPI, 635 DPI, 1270 DPI) according to different customer's requirement., 2400 DPI also is available with customized mold.

Dot-matrix holographic master shooting system composed of opetical tabel, He-Cd laser, programmable controller, acurate platform, Optics bridge, computer and software. This sytem is intelligentized engraving system. After you load engraving data in it'll work automatic untill finish the job.

Specifications:

1. Platform dimension: 700mmX500mmX700mm
2. Weight: 250 KG
3. Power: 220V, 1KVA







Characteristics:

1.Shape of Engraved Dot: circle or sqaure(different mold)
2. Engraving exposure speed: 20 ~ 80 dot/second(300dpi 600dpi 1200dpi);
3. Seperation of color: Plain Rainbow or RGB(different mold)
4. Engraving area: 160 x 160 mm
5. Resolution: 150dpi, 300 dpi, 600dpi, 1200dpi
6. Minimum viewing angle: 0.25 degree
7. Setting of viewing angle: 0 ~ 360 degree
8. Zoom in Zoom out effect: circle, square, rhombus, polygon, word, curve
9. Movement of curtain effect: two direction, one direction, or XY_ direction
10.Pearlescent effect: polygon movement of ray, random kinematic movement ray, combination of kinematic movement ray
11. Revolving ray effect: whatever revolving shape of curve, revolving effect of line, etc
12. Projective effect: whatever word, whatever font, recombination of image projection flex
13. Switch effect: Different flips switches with different viewing angle
14. Three-dimensional effect: word has fasle three-dimensional effect
15. Micron text effect: line of font can be 0.02mm, letter can be in size of 0.2mm
16. Random matrix: dots blink in different viewing angle
17. The operating system: win98 SE
18. Control graph: .TIF or .BMP file




Shanghai Henglei Hologram Co.,LTD
Address: Room 3001, Building 9, #133 LinPing Road,Shanghai City, 200086, China
Tel/Fax: 0086-21-61236144 (David song) Or please send email to Mr.song

E-mail: service@hlhologram.com
Contact Person: Mr.David Song(Marketing Manager)
E-mail:zxsong@hlhologram.com

Holographic Sticker 3D Hologram
