Hologram Electronic Forming

Electronic forming machine and electronic forming technology transfer for holographic master nickel operation shim duplicating from hologram glass master and holographic master origination.

After glass master shooted on laser beam effected glass and silvering on the surface of the glass, we have to put the hologram glass master into soft electronic forming tank to produce holographic master origination which image is nagative. After 70-90 minutes electronic forming, we'll get one hologram shim copy from the glass master which is called holographic master origination(mother master) . Then we put the holographic master origination into another hard electronic forming tank which can duplicate operation hologram shim for hard embossing and soft embossing. Small tank is for duplicating small master which is used to emboss hologram sticker and big tank is duplicating big master which is used to produce hologram film.

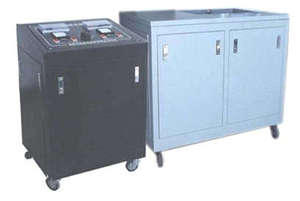

Small hologram electronic forming machine. It can be soft electronic forming tank to produce holographic master origination and hard electronic forming tank to produce hologram operation shim.


Big hologram electronic forming machine. It can be soft electronic forming tank to produce hologram master origination and hard electronic forming tank to produce hologram operation shim.



Small hologram electronic forming machine

Specifications of small hologram electronic forming machine tank:

1. Max electronic formed size:250MM*250MM
2. Voltage std.:220V 50HZ
3. Power consumption:1KW
4. Dimension: 800MM*800MM*1000MM
5. Weight: 150KG

Specifications of hologram electronic forming machine power(controller):

1. Voltage std.:220V 50HZ
2. Power consumption:1.5KW
3. Dimension: 400MM*600MM*800MM
4. Weight: 100KG



Big hologram electronic forming machine

Specifications of Big hologram electronic forming machine tank:

1. Max electronic formed size:1600MM*900MM
2. Voltage std.:220V 50HZ
3. Power consumption:2KW
4. Dimension: 2200MM*800MM*1200MM
5. Weight: 180KG

Specifications of hologram electronic forming machine power(controller):
1. Voltage std.:220V 50HZ
2. Power consumption:1KW
3. Dimension: It can be ustomized designed. The normal dimension is 500mm*400mm*1200mm
4. Weight: 150KG
