Dot-matrix Hologram Stickers

What does dot-matrix mean and how dot matrix hologram is made?

Dot-Matrix Hologram allows implementing unlimited computer controlled and laser beam engraved dots in holograms. This holograms are the result of designs comprising many tiny dots, where each dot is a separate diffraction grating. They create a beautiful impact of variable images. dot-matrix holographic sticker can have lots moving, flipping, zooming effect,etc. We can recombine good dot-matrix effect together with 2D/3D hologram which has good viewing depth with diffrent layers and hidden text.

Dot-matrix Holographic Sticker Samples Page 6

Dot matrix Type Samples 1 2 3 4 5 6 7 8 9 10

Dot-matrix kinematic movement effect.

Dot-matrix kinematic movement effect. SECURE hologram, stock design. Stock Hologram Sticker

Dot-matrix kinematic movement effect.

This one is Dot-matrix hologram combine with 2D hologram effectr. The shining movement light is dot-matrix hologram effect. Foreground ORIGINAL, background ORIGINAL, 15mm*15mm.

OK Tested, Dot-matrix, kinematic movment, 15mm*15mm size. There's Ket and lock image on foreground.

OK Tested, Dot-matrix, kinematic movment, 15mm*15mm size

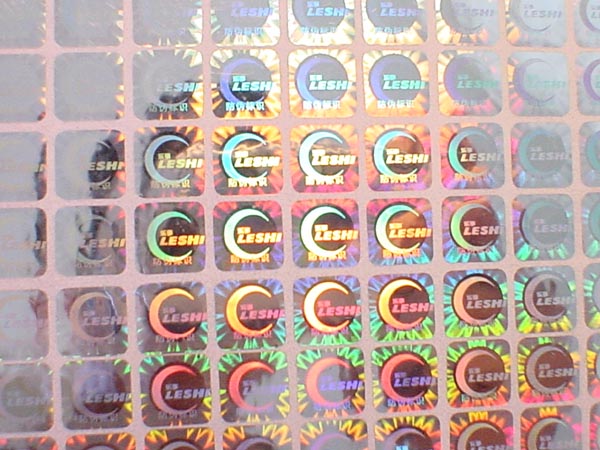

This stikcer is 2D/3D hologram with dot-matrix effect together. It's two layers, one color in foreground which is an image of moon in the middle of the sticker. Around the moon image is dot-matrix hologram pearlescent and zooming movemnet rays effect. The word "LESHI" is in the
second layer with good depth.

Dot matrix Type Samples 1 2 3 4 5 6 7 8 9 10

Dot matrix can make lots kinds of kinematic movement effects included in hologram stickers, such as animated multi color lines movement, animated flying bird, sparkle effect, kennetgram, modulate depth effect, dead color(solid white color), peralogram with chennals, raster text, microtext multi color, gradient effect, concealed text, expanding colors, speider's net gradiation effect, kinematic, dots grating, shrinking & kinematic, kinematic movement dots in different styles. All these are simple dot-matrx effects which is achieved easily by dot matrix system.

dot-matrix effect 1: Zoom in Zoom out effect: circle, square, rhombus, polygon, word, curve
dot-matrix effect 2: Movement of curtain effect: two direction, one direction, or XY_ direction
dot-matrix effect 3: Pearlescent effect: polygon movement of ray, random kinematic movement ray, combination of kinematic movement ray
dot-matrix effect 4: Revolving ray effect: whatever revolving shape of curve, revolving effect of line, etc
dot-matrix effect 5: Projective effect: whatever word, whatever font, recombination of image projection flex
dot-matrix effect 6: Switch effect: Different flips switches with different viewing angle
dot-matrix effect 7: Three-dimensional effect: word has fasle three-dimensional effect, imitational 2D/3D hologram
dot-matrix effect 8: Micron text effect: line of font can be 0.02mm, letter can be in size of 0.12mm (1270 DPI)
dot-matrix effect 9: Random matrix: dots blink in different viewing angle

Holograms have a very distinctive tamper evident feature. Once the hologram is pasted on any product it cannot be removed. If tried to remove it self destroys.This is very useful for tamper proof and security applications. We have several types of tamper release as Full/Partial tamper tvident, VOID tamper evident, ORIGINAL tamper evident bee hive tamper evident, customized name after tamper as well.
